CalfRail CFR100

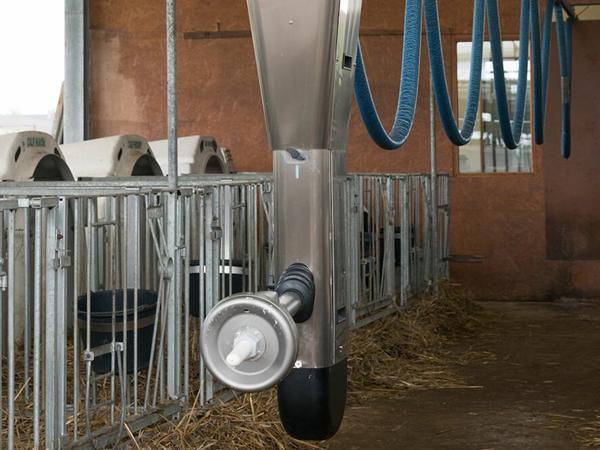

CFR100 is a robotic arm running in a rail to feed calves automatically in individual housing, it is an extending solution of automatic calf feeder CF1000S. Each CFR100 can feed max 50 calves and each CF1000S can work with max 2 CFR100 robotic arms. It feeds the calves in a natural way with small portions up to 8 times a day, which allows the calves drink more milk and have better weight gain before bring them into group housing, and less stress during the transition. The same as grouping feeding with CF1000S, the drinking information are recorded in the same system for easy calf management.
- Fresh and on-time preparation
- Controlled feeding
- Automatic cleaning
Key benefits
Excellent calf performance
Calf rail CFR100 work with CF1000S to feed calves in individual box, it gives good control feeding on each portion and total amount to individual animals which brings excellent calf performance.
- With small, age-appropriated portions for less health problem
- Feed calves up to 8 times a day, which allows high milk intake for a high weight gain
- Perfect feed temperature up to the end of the portion
Less labour costs
Compare to feeding 64 calves 3 times a day by bucket in single hutch, labor hours of CFR100 feeding is 26min instead of 8h32min.
- Machine replace labor feeding with exact temperature and right concentration
- Teat feeding replace bucket feeding, no more bucket dragging and cleaning
- Automatic clean mixer, heat exchange and half automatic circulation clean milk pipeline
Digitized animal feeding information
CFR100 can record the calf drink information, such as drink speed, drink amount for an easy statistic report and calf management, you can reach this figures at barn, at desk or at the way of your traveling.
- Recording of all data in one system
- Monitoring of drinking behavior, early warning of disease risks
- Mobile remote animal control
product.documents_sheets
CalfRail unit weight | CalfRail unit weight Approx. 40 kg. |
Calves per CalfRail | Calves per CalfRail Max. 50 |
CalfRail per device | CalfRail per device Max 2 |
Rail height | Rail height 2,2 m. |
Length of hose | Length of hose Max 40 m. |
Parking position dimensions | Parking position dimensions Width: min 0,6 m. Length: 1,5 - 3 m. |
Power supply | Power supply 230V/400V |
Voltage | Voltage 25,5 VDC |
Pmax | Pmax 150W |
Imax | Imax 6.3A |
